MPO/MTP Multimode Fiber Cable

MPO/MTP multimode fiber cables for short- and medium-reach, high-density optical connectivity in data centers and high-speed network systems. Available with OM3, OM4, and OM5 50/125 μm multimode fiber, Base-8 or Base-12 configurations, multiple fiber counts, connector genders, polarity types, and optical loss options.

The cable configuration is selected according to the transceiver interface, transmission speed, link distance, fiber grade, fiber count, polarity, and required optical performance.

High Density MPO Multimode Fiber Cable
The High Density MPO Multimode Fiber Cable is a pre-terminated multi-fiber cable assembly designed to consolidate multiple multimode optical channels through MPO/MTP-compatible connector interfaces.

view more
MPO To LC Multimode Fiber Cable
The MPO to LC Multimode Fiber Cable is a pre-terminated breakout cable that connects a multi-fiber MPO/MTP interface with individual LC duplex connections in multimode fiber networks. It is used...

view more
MPO Multimode Trunk Cable
The MPO Multimode Trunk Cable is a high-density fiber assembly designed for structured cabling in data centers, enterprise server rooms, and high-speed network environments.

view more
OM5 MPO Multimode Fiber Cable
The OM5 MPO Multimode Fiber Cable is a pre-terminated high-density fiber assembly using OM5 wideband multimode fiber (WBMMF) and MPO connectors. It is designed for short-reach, high-bandwidth...

view more
OM4 MPO Multimode Fiber Cable
The OM4 MPO Multimode Fiber Cable is a factory-terminated, high-density fiber assembly for structured cabling in data centers, enterprise networks, and short-reach high-speed optical links. Using...

view more

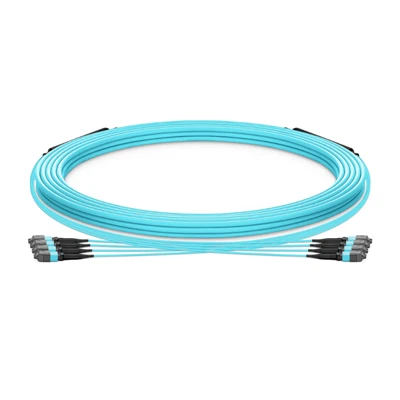

OM3 MPO Multimode Fiber Cable
The OM3 MPO Multimode Fiber Cable is a factory-terminated multimode fiber assembly built with OM3 optical fiber and MPO/MTP multi-fiber connectors.

view more

MPO/MTP Multimode Fiber Cable Specifications

Parameter	Available Options
Fiber Type	OM3 / OM4 / OM5
Fiber Size	50/125 μm
Wavelength	850 / 1300 nm
Connector	MPO / MTP
Gender	Male / Female
Polarity	Type A / Type B / Type C
Fiber Count	8 / 12 / 24 / 48 / 72 / 144
Cable Type	Round / Micro-distribution / Ribbon
Jacket	LSZH / PVC / OFNP
Operating Temperature	-20°C to +70°C
Testing	IL / RL / 3D Interferometry / End-Face Inspection
Compliance Options	RoHS / REACH / CE / UL / CPR, where applicable

Actual available configurations and compliance markings depend on the selected cable construction and project requirements.

OM3, OM4 & OM5 Multimode Fiber Options

Our MPO/MTP multimode fiber cables use 50/125 μm multimode fiber and are available in OM3, OM4, and OM5 grades for different high-speed network architectures.

Fiber Type	Typical Use	Key Consideration
OM3	10G/40G/100G short-reach links	Cost-effective multimode option for established data center networks
OM4	40G/100G and higher-speed data center links	Higher bandwidth and longer supported reach than OM3
OM5	High-speed multimode and SWDM applications	Wideband multimode fiber for multi-wavelength transmission

Actual transmission distance depends on the transceiver, transmission rate, optical link budget, and applicable network standard. We can review the complete configuration before production.

Base-8 & Base-12 MPO/MTP Configurations

MPO/MTP multimode assemblies can be configured for different high-density fiber architectures, including Base-8 and Base-12 systems.

Base-8: 8-fiber transmission architecture commonly used with parallel-optics applications and high-speed data center connectivity.

Base-12: 12-fiber configuration widely used in structured cabling and high-density backbone systems.

MPO/MTP Connector, Gender & Polarity

We supply MPO/MTP assemblies with different connector configurations to match the requirements of the complete link.

Connector Gender

Male: Connector with guide pins

Female: Connector without guide pins

The required gender depends on the mating equipment, cassette, adapter, trunk, or patching architecture.

Polarity

Available polarity configurations include:

Type A: Straight-through fiber mapping

Type B: Reversed fiber mapping

Type C: Pair-flipped fiber mapping

Polarity should be specified together with the transceiver and mating components to ensure correct transmit/receive fiber routing.

Cable Construction & Jacket Options

MPO/MTP multimode assemblies are available in different cable constructions and jacket options for high-density data center cabling and installation requirements.

Round Cable

General-purpose construction for trunk and patching applications

Micro-Distribution Cable

Smaller cable profile for high-density routing and space-constrained installations

Ribbon Cable

Multi-fiber ribbon construction for high-count assemblies

LSZH

Low-smoke, halogen-free jacket option for installations with specific safety requirements

PVC

Standard jacket option for applicable indoor installations

OFNP

Plenum-rated construction for installations requiring OFNP cable performance

Cable length, fiber count, cable diameter, jacket type, and other construction details are selected according to the required MPO/MTP assembly configuration.

Standard-Loss & Low-Loss Options

MPO/MTP multimode fiber cables are offered in standard-loss and low-loss versions, allowing different connector loss requirements to be matched to the optical link budget.

Configuration	Typical Use
Standard-Loss	General data center and high-density multimode fiber links
Low-Loss	High-speed links where connector insertion loss has a tighter impact on the total link budget

Optical parameters: Insertion Loss (IL), Return Loss (RL), fiber attenuation, and connector end-face geometry.
Low-loss assemblies are available with selected MPO/MTP connector configurations and fiber types. The specified IL/RL limits are confirmed according to the cable configuration and project requirements.

Applications

MPO/MTP multimode fiber cables are primarily used for high-density short-reach optical connectivity, including:

Enterprise data centers
Cloud computing facilities
High-performance computing (HPC) environments
Server and switch interconnections
High-density structured cabling
Data center backbone and distribution links

The cable configuration is selected according to the optical modules, rack architecture, fiber count, and required transmission distance.

Manufacturing Capabilities

DIMI Fiber manufactures MPO/MTP multimode fiber cables and fiber optic cable assemblies through integrated connector assembly, precision fiber termination, cable processing, optical testing, and final inspection. Our production capabilities support standard MPO/MTP configurations as well as project-specific multimode fiber cable assemblies.

Automated and precision-assisted fiber preparation, cleaving, polishing, and connector assembly
Controlled epoxy curing for connector termination
Cable jacketing and cable construction for different installation requirements
Production support for multi-fiber assemblies and different MPO/MTP configurations

Optical Inspection & Testing

Each finished MPO/MTP assembly can be tested according to the ordered configuration before shipment.

Test / Inspection	Purpose	Buyer Evidence
Insertion Loss Testing	Verify optical loss of the connectorized assembly	IL test result
Return Loss Testing	Check optical reflection performance	RL test result
3D Interferometry	Verify MPO/MTP end-face geometry	Geometry inspection record
End-Face Inspection	Detect contamination, scratches, chips, and other defects	Inspection result
Polarity / Fiber Mapping	Verify fiber sequence and polarity	Fiber mapping record
Final QC Inspection	Confirm cable configuration against the order	Final inspection record

Test reports and inspection records can be supplied according to project requirements.

Custom MPO/MTP Multimode Fiber Cable Manufacturing

We manufacture MPO/MTP multimode cable assemblies according to drawings, BOMs, samples, or technical specifications.
Customization can include:

OM3 / OM4 / OM5 fiber
8–144 fiber configurations
Cable length
Connector type and gender
Type A / B / C polarity

Cable construction and jacket material
Pulling-eye kits
Jacket color
Product labeling and barcode
Individual test reports

For project orders, customers can provide the transceiver model, existing cable specification, system drawing, or BOM for configuration review before production.

FAQ

Q: Can you provide samples before a production order?

A: Yes. Sample orders can be arranged to verify connector fit, cable construction, fiber configuration, optical performance, and compatibility with the customer's existing equipment before a larger production order.

Q: What information do you need to quote MPO/MTP multimode fiber cables?

A: A basic quotation normally requires the required quantity, cable length, fiber configuration, connector configuration, and cable construction. For project-specific orders, providing the transceiver model, BOM, drawing, or existing cable sample allows us to review the configuration more accurately.

Q: Can you match an existing MPO/MTP cable?

A: Yes. An existing cable, product label, drawing, or sample can be used as a reference for reproduction. We can review the connector configuration, fiber mapping, cable construction, dimensions, and other identifiable specifications before confirming production.

Q: Can individual cables be labeled and traceable?

A: Yes. Product labels, part numbers, barcodes, serial numbers, and other identification requirements can be incorporated into the cable assembly where required. Test records can also be associated with the specified product identification.

Q: How are MPO/MTP cable assemblies packaged for international shipment?

A: Packaging can be configured according to cable length, fiber count, connector protection requirements, and shipping method. Connector end faces are protected during packing to reduce the risk of contamination or mechanical damage during transportation.

Q: Can you supply cables according to our BOM or project specification?

A: Yes. BOM-based production is available for project orders. The supplied specification can be reviewed before production to confirm the required cable configuration, quantities, labeling, and other purchasing requirements.

Q: What is the typical lead time for MPO/MTP cable orders?

A: Lead time depends on the cable configuration, fiber count, connector type, quantity, testing requirements, and current production schedule. The confirmed lead time is provided after the technical configuration and order quantity are reviewed.

Q: Can you provide documentation with the shipment?

A: Documentation can be supplied according to the order requirements, including product specifications, optical test results, inspection records, packing information, and other agreed quality documents.
